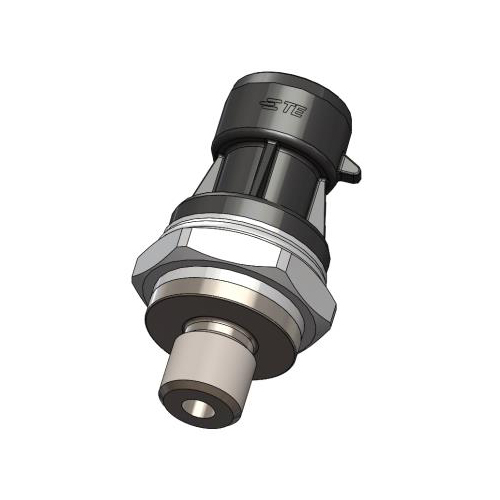

M71H2氢气压力传感器

2024-01-29 213

规格书下载:点击下载

        TE Connectivity’s MX1H2 Series is designed for on road hydrogen storage and distribution. The transducer utilizes TE’s proven MSG strain gage sensing technology and a single piece machined metal port and sense element. To enable hydrogen compatibility the sensor uses 316L stainless steel where contact with Hydrogen is expected. The result is a stable and durable interface to the hydrogen system.

        The MX1H2 series is validated for hydrogen systems through EC-79 environmental and durability testing and holds the EC-79 certification for on road vehicles. The transducer exceeds the maximum pressure ratings required for certification.


技术指标:


类       型:  表压

量       程:  20,448,900Bar

精  确  度:  ±0.25%

输       出: 0.5~4.5V

供电电源:  4.75~5.25V

工作温度:  -40℃~125℃

电气连接:  Packard

螺纹接口:  7/16-20UNF、3/8-24UNF

特       点:  EC79氢气认证、反极性保护、高爆破压力、符合ISO11452的EMC性能

典型应用:  运输燃料电池系统、氢气储存、中压分配回路
