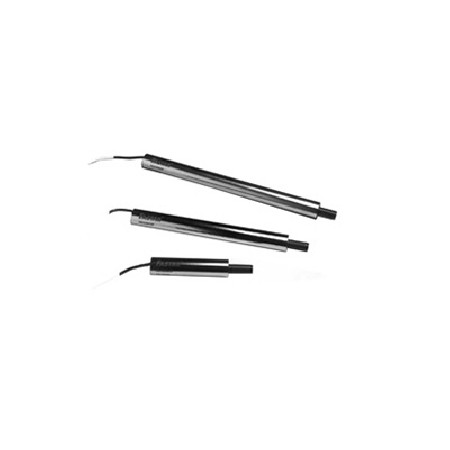

产品详情：FASTAR高频位移传感器

        FASTAR is a fast response, shock resistant,non-contact displacement transducer designed to measure linear displacement(position).A precision variable inductor with a stroke to body length ratio of almost 1:1, FASTAR has a body length approximately half as long as typical LVDTs. Used with a Sentech patented signal processor, it allows high speed displacement measuring with less error than other non-contact devices, with excellent immunity to EMI.
        FASTAR consists of a movable core inside a coil-wound tube. As the core moves in or out, coil inductance changes. The processor generates a DC voltage proportional to the change in inductance.

型        号：FS380，FS1000，FS2000，FS3000，FS4000，FS6000～FS12000
量        程：0.76, 2, 4, 6, 8,10，12，18，24(inches)0～19～51～101～152～203～254～305～457～609mm
线  性  度：± 0.15 %（ ± 0.10 %可选）
重  复  性：0.003 %
响应频率：15000Hz
响应时间：35μS
工作温度：-50～125℃ ，补偿温度-5～80℃
特        点：快速响应，反应时间35μS，抗冲击、振动，动态温度补偿，具有抗强EMI（电磁干扰）
典型应用：气缸反馈，材料处理系统，轧辊间隙，阀门定位，机器人运动控制
