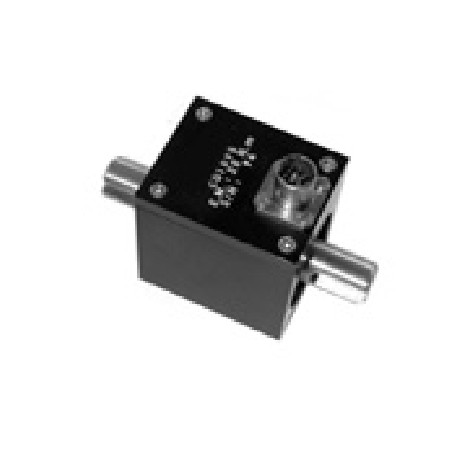

The CD1095 has been designed to measure in-line torque on rotating shafts. Its sensing element is based on thin layer strain gauges in a Wheatstone bridge configuration providing excellent temperature stability.

        Optionally the torque sensor can receive an on-board amplifier for high-level output.

        Another version with male square couplings exists under the reference CD1050.

        With ma long standing experience as a designer and manufacturer of sensors, TE CONNECTIVITY often works with customers to design or customize sensors for specific uses and testing environments.

        On request, Instruction documents can be provided to ease the selection and use of our sensors and provide helpful tips.

封        装：键轴连接
量        程：±5～±2.5KN（±4～±2KLbf）
非  线  性：<±0.25%FS
输        出：±20mV（4V；±5V可选）
工作模式：动态旋转扭矩
工作温度：-20～80℃
特        点：高精度，内置放大
典型应用：过程控制设备，机器人和效应器，测试和测量
